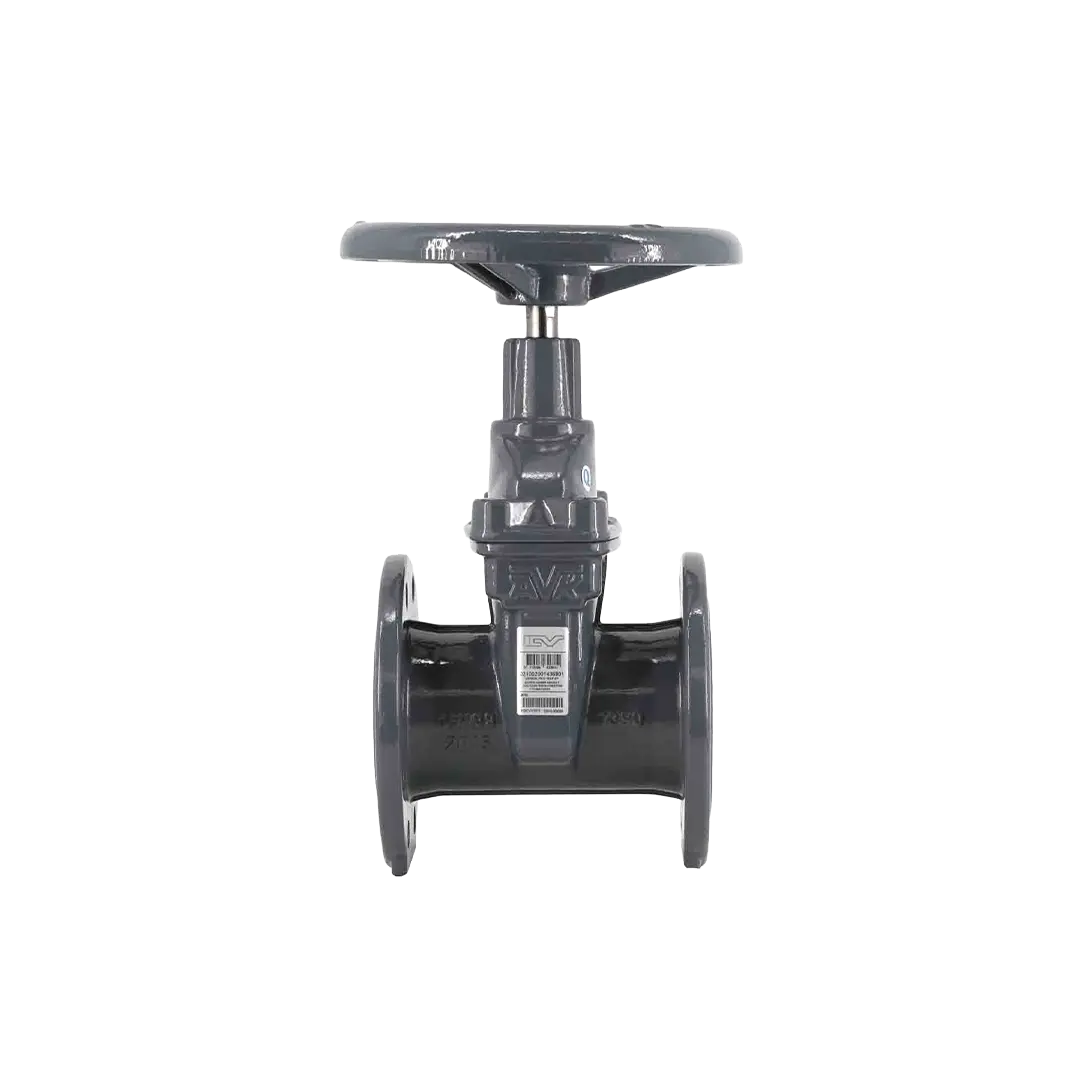

AVK-ICV NON RISING GATE VALVE PN16

Name: AVK-ICV NON RISING GATE VALVE PN16
Brand: AVK - ICV Valves
SKU: 02/20
Availability: InStock

645.00 QAR

Select Location:

qatar

The AVK-ICV ductile iron Gate Valve PN16 provides reliable isolation for water supply and distribution systems. It features an EPDM-encapsulated disc, stainless steel stem and corrosion-resistant epoxy coating for water temperatures up to 70°C.

Pressure Rating: PN16

Body Material: Ductile Iron GJS-500-7

Maximum Temperature: 70°C

Testing Standard: EN 1074-1 & 2 / EN 12266

size

Clear

SKU: 02/20 Category: Manual Valves Brand: AVK - ICV Valves

Valve Materials

Body

Ductile Iron GJS-500-7

Stem

Stainless Steel DIN X20Cr13

Disc

EPDM-Encapsulated Ductile Iron

Valve Application

Suitable Medium

Water

Maximum Operating Temperature

70°C

Pressure Rating

PN16

Testing Standard

Pressure Test

EN 1074-1 & 2 / EN 12266

Seat Test

1.1 × PN

Body Test

1.5 × PN

Valve Details

Body Marking

DN, PN, Casting Number and Body Material

External Coating

Epoxy Coating RAL 7011

Optional Extras

Handwheel, Extension Spindle, Stem Cap or Flange Adaptor

size	DN65, DN80, DN100, DN125, DN150, DN200
