Manual Valves

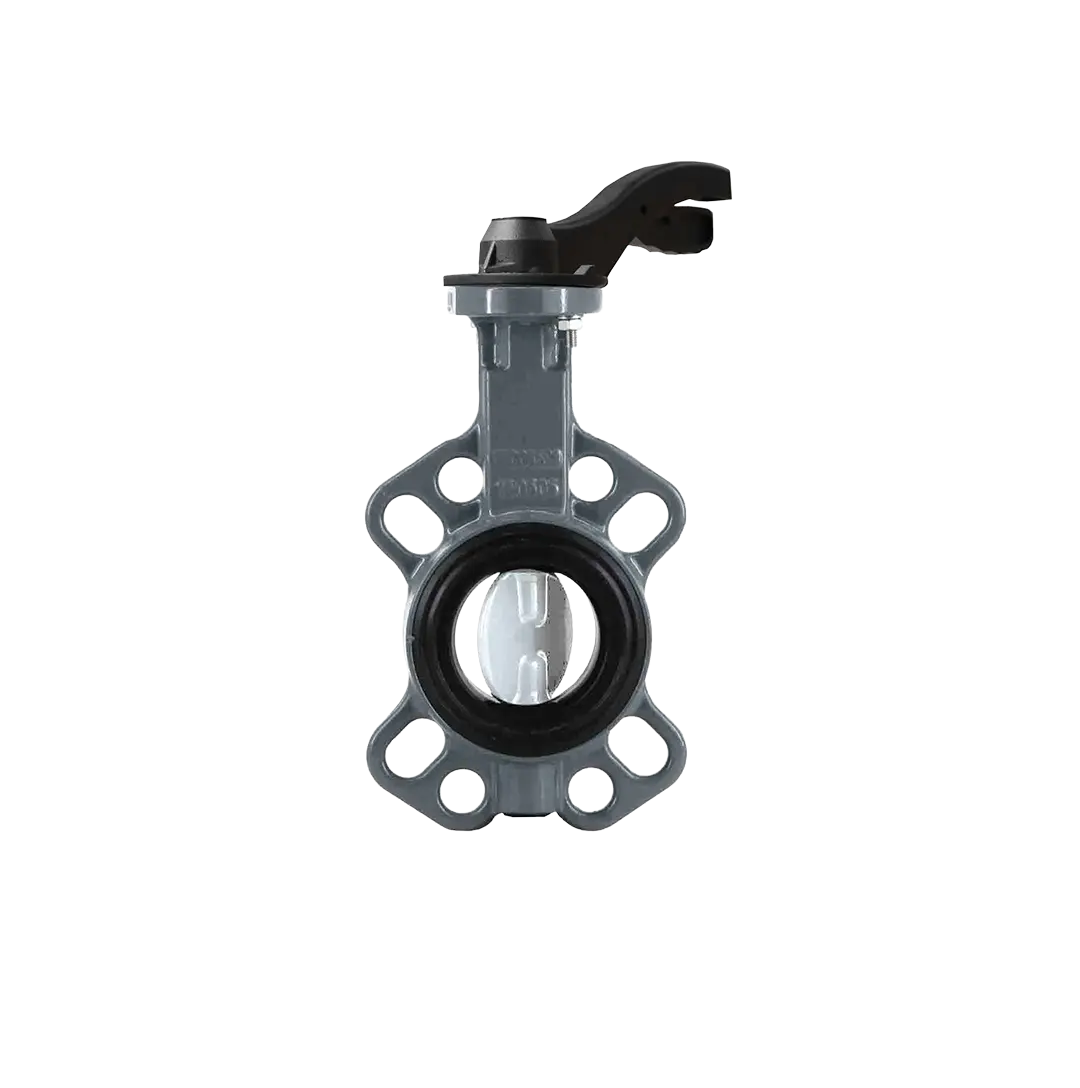

AVK-ICV BUTTERFLY VALVE LEVER PN16

Name: AVK-ICV BUTTERFLY VALVE LEVER PN16
Brand: AVK - ICV Valves
SKU: 76/72
Availability: InStock

229.00 QAR

Select Location:

qatar

The AVK-ICV Centric Butterfly Valve with loose EPDM liner is designed for reliable isolation in HVAC and building-services systems. Manufactured according to EN 593, it is suitable for water temperatures up to 70°C.

Valve Type: Centric Butterfly Valve

Size Range: DN50–DN400

Liner Material: EPDM

Maximum Temperature: 70°C

Testing Standard: EN 1074-1 & 2 / EN 12266

size

Clear

Valve Materials

Body

Ductile Iron

Disc

Epoxy-Coated Ductile Iron / stainless steel

Liner

EPDM

Design Standards

Valve Design

EN 593

Face-to-Face Dimension

EN 558, Table 2, Series 20

Flanges and Drilling

EN 1092-2 / ISO 7005-2

Valve Application

Suitable Medium

Water

Maximum Operating Temperature

70°C

Size Range

DN50–DN400

Testing Standard

Pressure Test

EN 1074-1 & 2 / EN 12266

Seat Test

1.1 × PN

Body Test

1.5 × PN

Valve Operation

DN50–DN200

Lever Operated

DN250–DN400

Worm Gear Operated

External Coating

Epoxy Coating RAL 7011

Valve Markings

Body Marking

DN, PN, Casting Number and Body Material

size	DN65, DN80, DN100, DN125, DN150
